RT25

Entry level single-core ARM Panels

  • Cut-Out

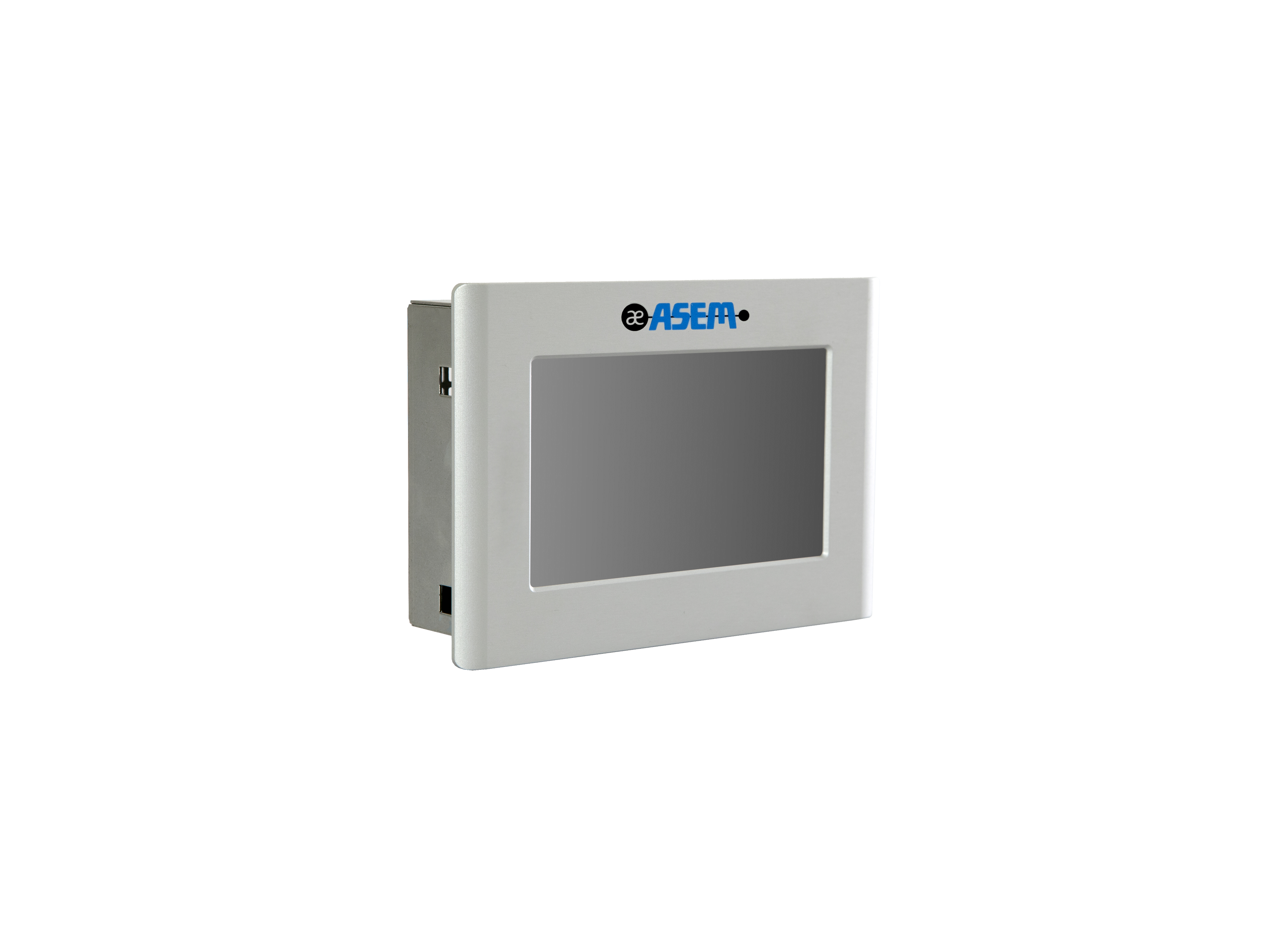

The ARM based Panel IPCs of the RT25 family have the smallest LCD sizes of the ASEM portfolio. They are based on the ARM Cortex A8 (i.MX535) 1GHz processor. The "all in one" motherboard provides one Ethernet 100Mbps port, one  USB 2.0 port, one serial RS232/422/485 interface with rear access, 1 GB DDR3 RAM, 256MB Nand-Flash for the operating system and 4GB pseudo-SLC eMMC memory to save and manage application and project data.


USB 2.0 port, one serial RS232/422/485 interface with rear access, 1 GB DDR3 RAM, 256MB Nand-Flash for the operating system and 4GB pseudo-SLC eMMC memory to save and manage application and project data.


The RT25 family is available with 16 million colours LED Backlight TFT LCDs, 4.3" and 7" in Wide aspect ratio, with Aluminium or Aluminium True flat front panels and 4 wires resistive touchscreen.


RT25 systems have a 24 VDC power supply input.

Technical Data

OS AVAILABLE

  • Microsoft Windows Embedded Compact 7 Pro with Datalight Reliance Nitro file system

  • Embedded Linux distribution based on Yocto Project

  • No OS

LED backlight TFT LCD

4.3" W - 480x272

7" W - 800x480

TOUCHSCREEN

Resistive 4 wires

FRONT PANEL

Aluminium

PROTECTION GRADE

IP66, Enclosure type 4x - frontal

PROCESSOR

ARM Cortex A8 processor i.MX535 1 GHz

SYSTEM MEMORY - RAM

1 GB with DDR3 soldered

MASS STORAGE

  • 256 MB Read-Only NAND-Flash for operating system and runtime

    4 GB eMMC pseudo-SLC, file system organization for projects and applications

LAN

LAN1 Ethernet 100 Mbps (RJ45)

USB

1 x USB 2.0 rear (Type-A)

SERIAL

1 x RS-232/422/485 (DB15M)

FIELDBUS

-

  • 24VDC (18 ÷ 36VDC)

OPERATING TEMPERATURE

0°C÷50°C

APPROVALS

CE, cULus LISTED (508)

OS AVAILABLE

  • Microsoft Windows Embedded Compact 7 Pro with Datalight Reliance Nitro file system

  • Embedded Linux distribution based on Yocto Project

  • No OS

LED backlight TFT LCD

4.3" W - 480x272

7" W - 800x480

TOUCHSCREEN

Resistive 4 wires

FRONT PANEL

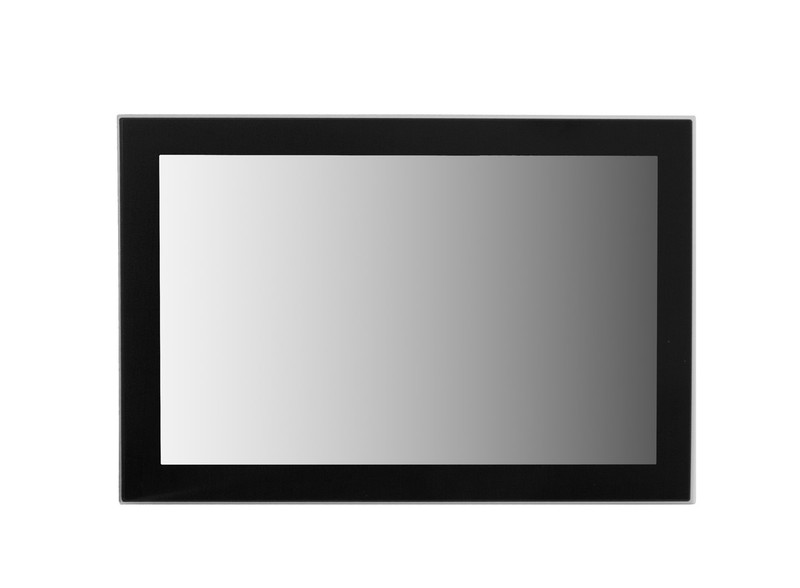

True Flat Aluminium

PROTECTION GRADE

IP66, Enclosure type 4x - frontal

PROCESSOR

ARM Cortex A8 processor i.MX535 1 GHz

SYSTEM MEMORY - RAM

1 GB with DDR3 soldered

MASS STORAGE

256 MB Read-Only NAND-Flash for operating system and runtime

4 GB eMMC pseudo-SLC, file system organization for projects and applications

LAN

LAN1 Ethernet 100 Mbps (RJ45)

USB

1 x USB 2.0 rear (Type-A)

SERIAL

1 x RS-232/422/485 (DB15M)

FIELDBUS

-

  • 24VDC (18 ÷ 36VDC)

OPERATING TEMPERATURE

0°C÷50°C

APPROVALS

CE, cULus LISTED (508)
