ASEM 6300P-SW2

Fanless Panel IPCs with Intel® Raptor Lake platform

Lifecycle status: Active
FT Optix - optional
REAL-TIME READY SOLUTIONS
IP69K

  • 12.1’ and 15‘ TFT LCD in 4:3 format, 17’ and 19‘ in 5:4 format and 12.1’, 15.6‘, 18.5’, 21.5‘ and 24’ in Wide format with up to Full HD resolution
  • Aluminium (AF), aluminium True Flat (AT) and stainless steel True Flat (SR) front panels with resistive touchscreen
  • Aluminium and True Flat glass front panels with capacitive back-projected multitouch touchscreen (GL)
  • Intel® Raptor Lake PCH SoC generation
  • Up to 48GB RAM with ECC support (for industrial processors), essential for mission critical and real time applications due to superior reliability and guaranteed data integrity
  • Up to 3 simultaneous storage options: M.2 SSD, 2.5’ SSD and CFast
  • Fanless IPC ensuring operation between 0 and 50 °C without the need for mechanical ventilation
  • ATX functionality for remote power on and native support for our new Smart UPS
  • 256kB MRAM for saving retention variables (optional)
  • Available in SL version with reduced depth, S0 version with the possibility to install additional interfaces, S1 version with one PCIe expansion slot and D2 with 2 extractable SSDs
  • BIOS Thin Manager ready pre-installed
  • FactoryTalk® Remote Access™ remote support software optional (UBIQUITY compatible)
  • FactoryTalk® Optix™ software for HMI and Edge Computing applications (optional)






Richiedi maggiori informazioni_IT

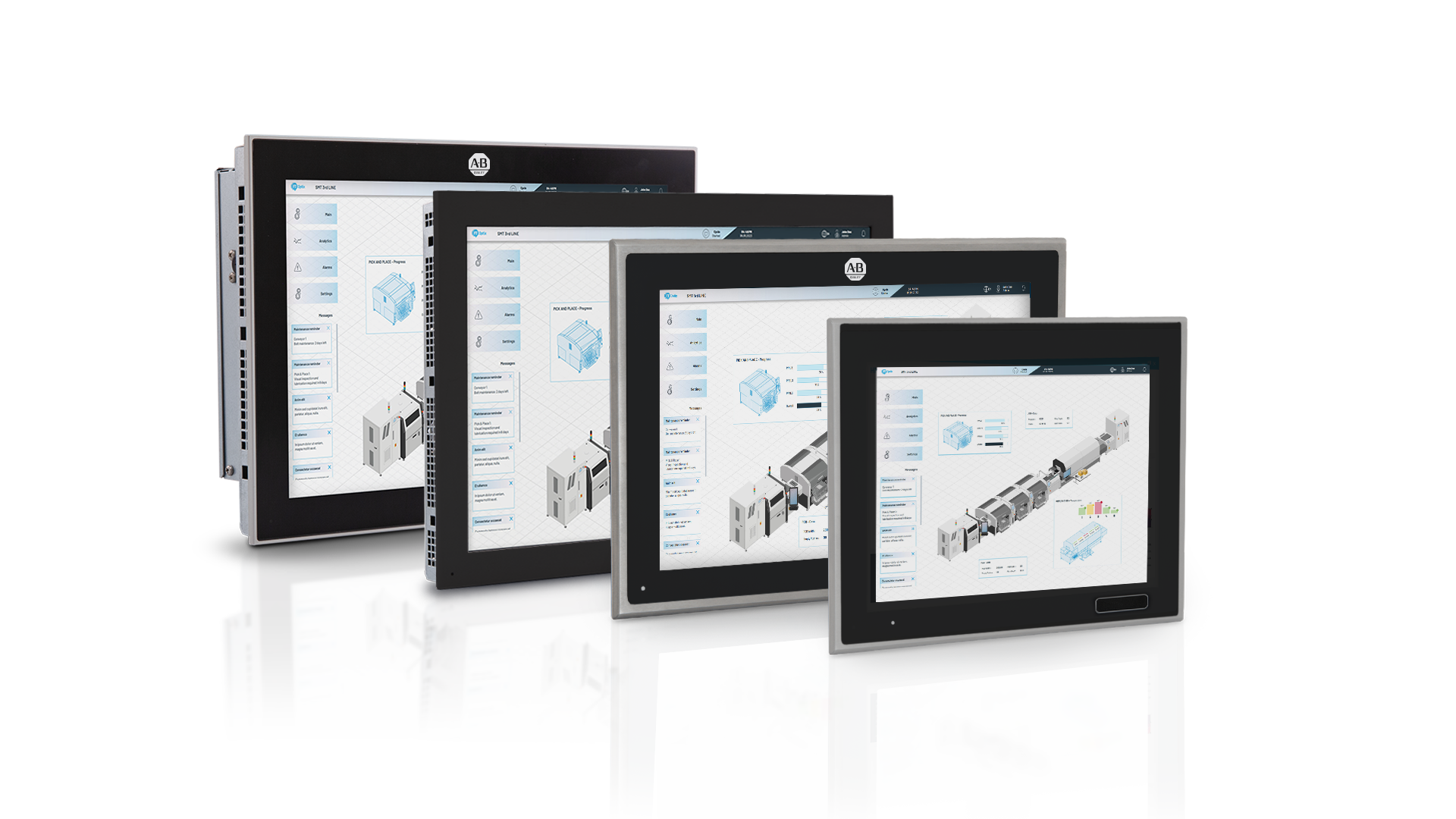

Front panel design

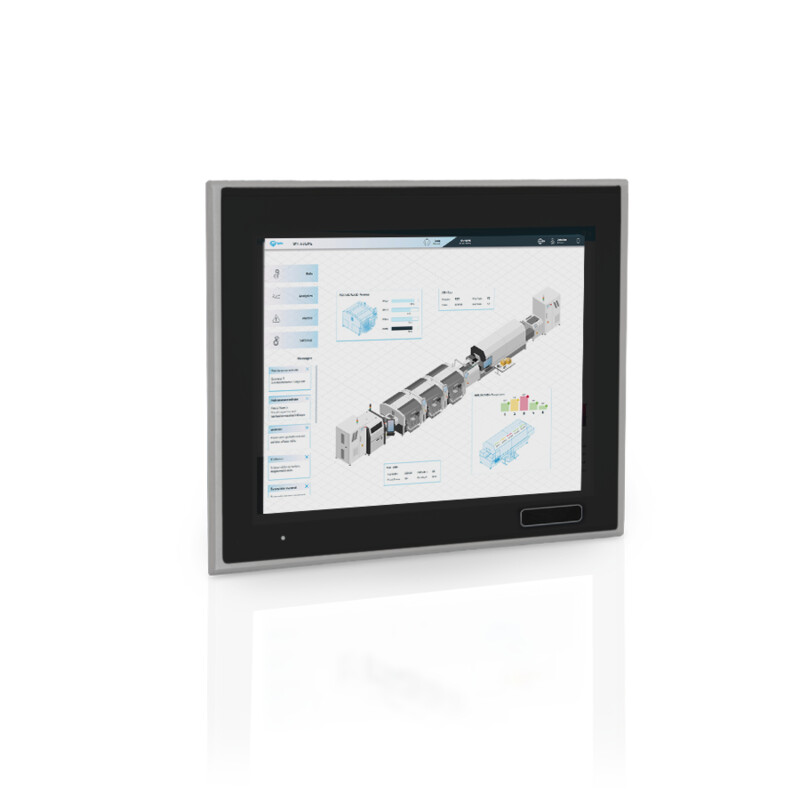

ASEM 6300P-SW2xxA

Aluminum Frame (AF)

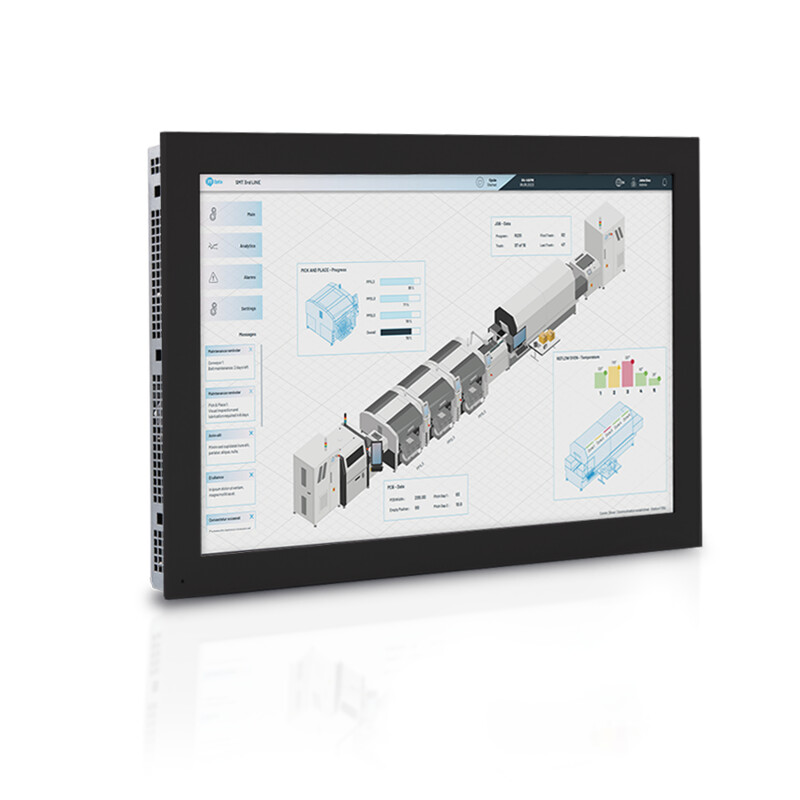

ASEM 6300P-SW2xxB

Aluminum TrueFlat (AT)

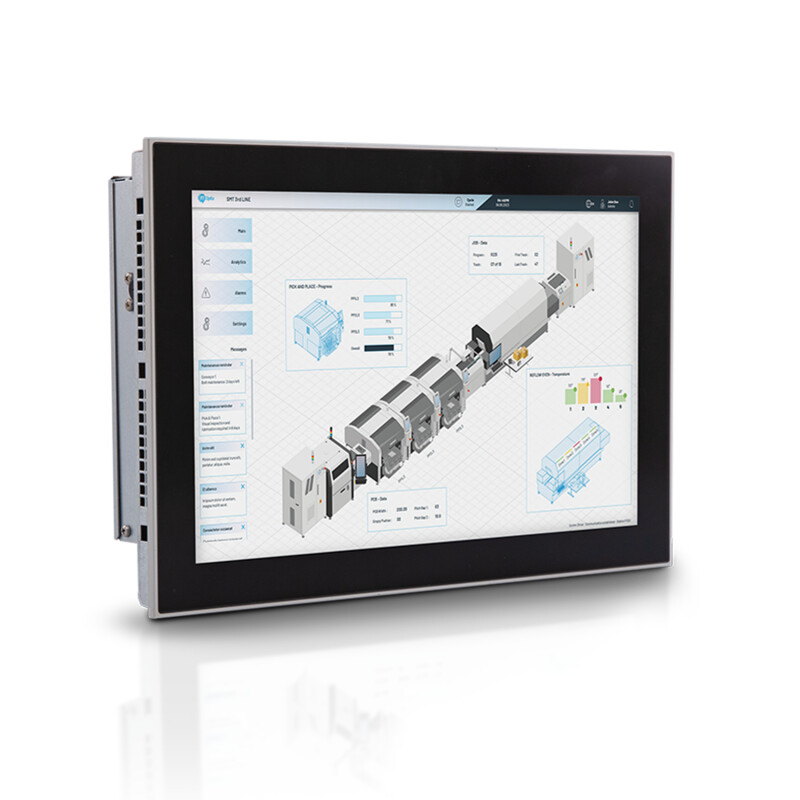

ASEM 6300P-SW2xxC

Glass (GL)

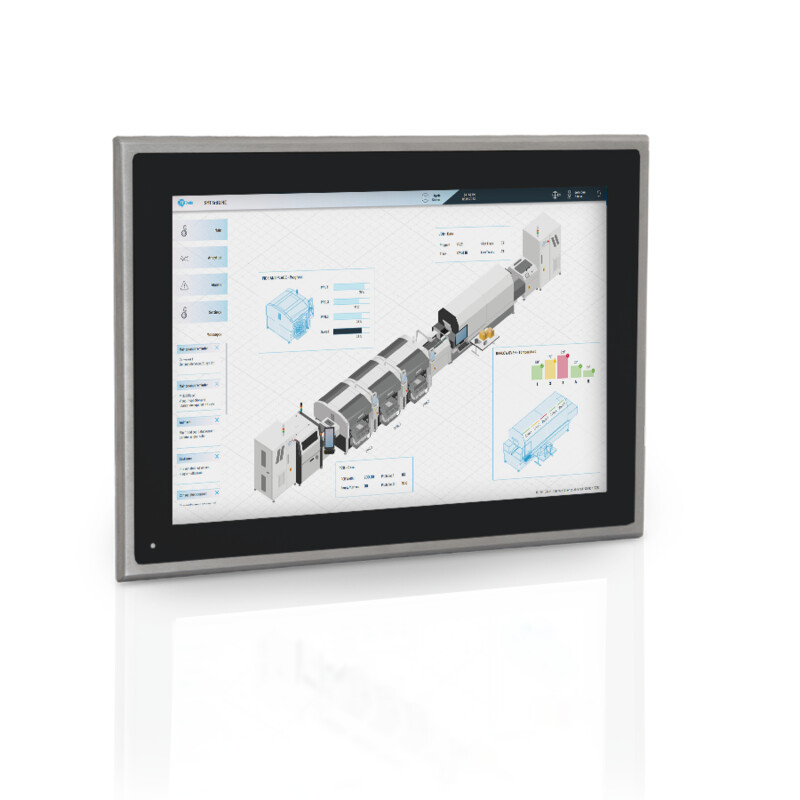

ASEM 6300P-SW2xxD

Stainless Steel (SR)

VERSIONS

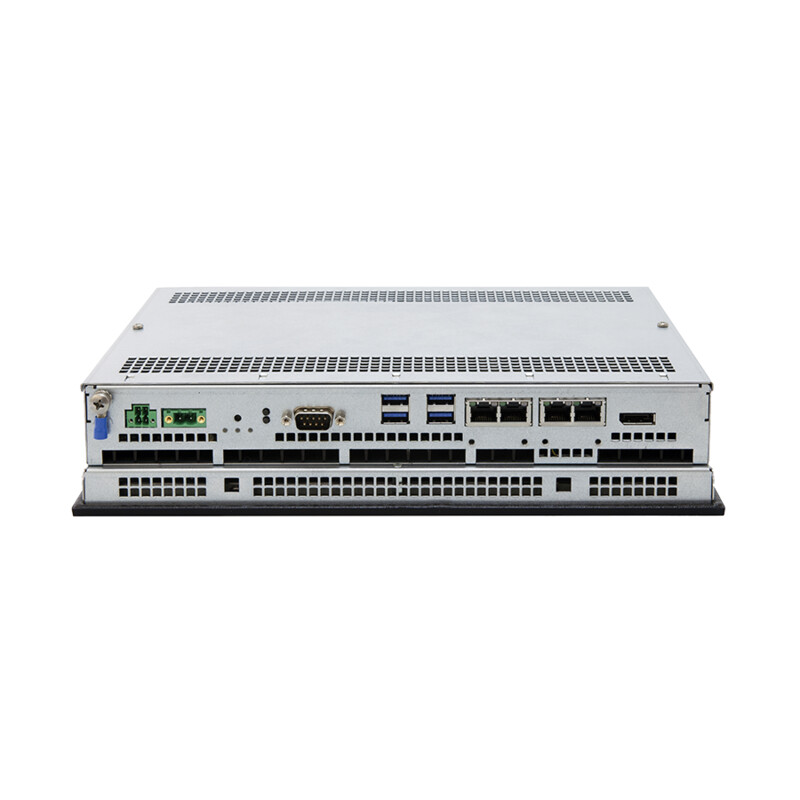

ASEM 6300P-SW2xxxxAA (SL)

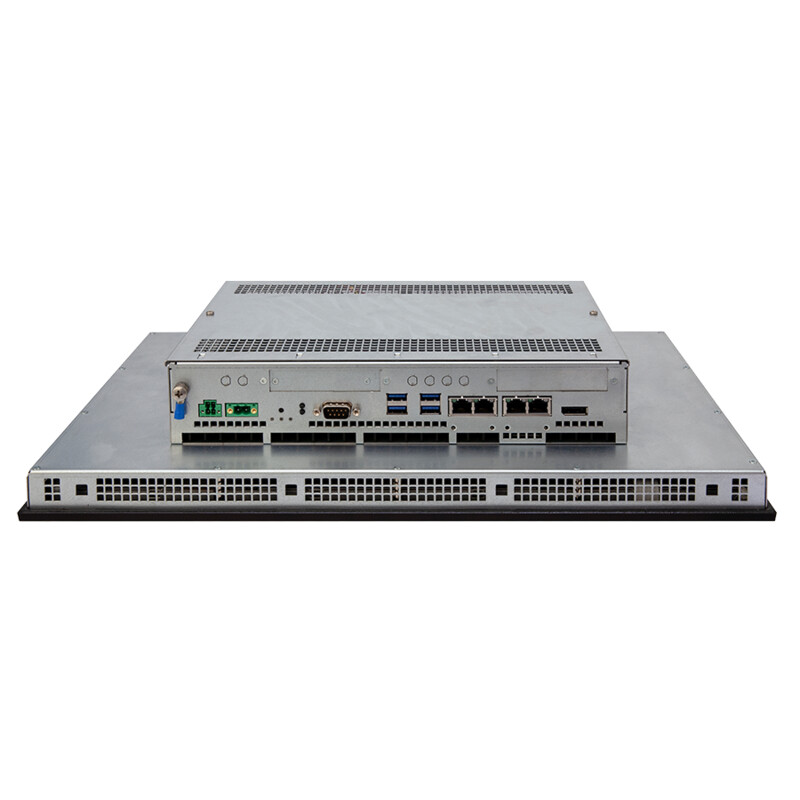

ASEM 6300P-SW2xxxxAB (S0)

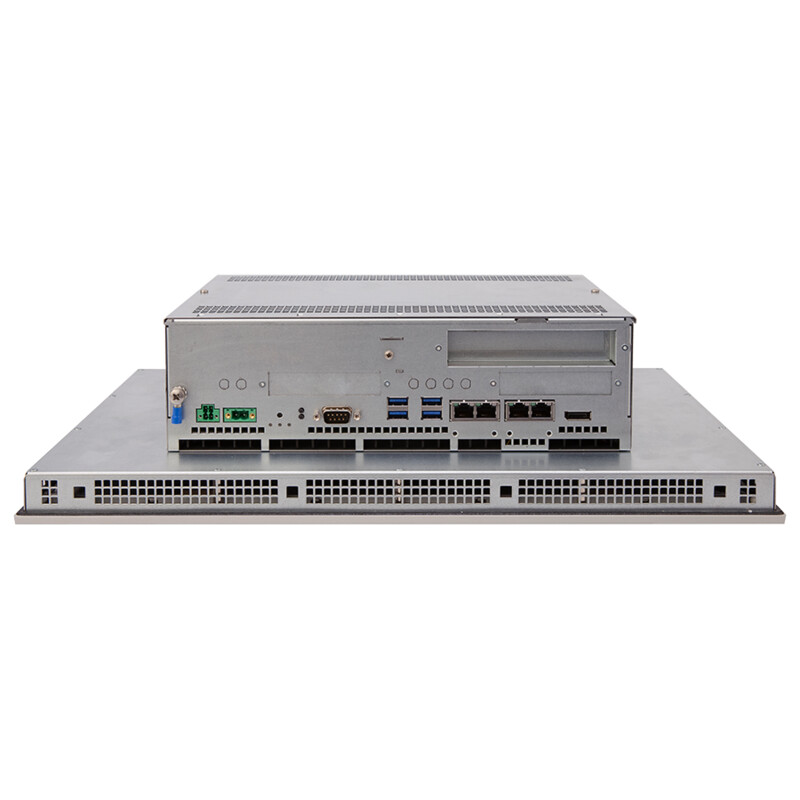

ASEM 6300P-SW2xxxxAC (S1)

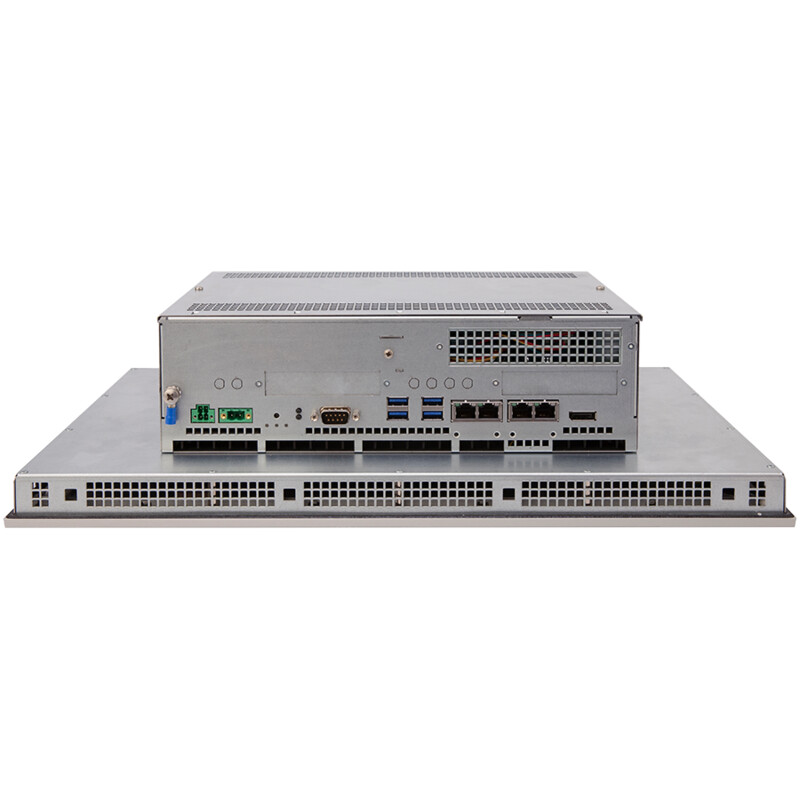

ASEM 6300P-SW2xxxxAD (D2)
