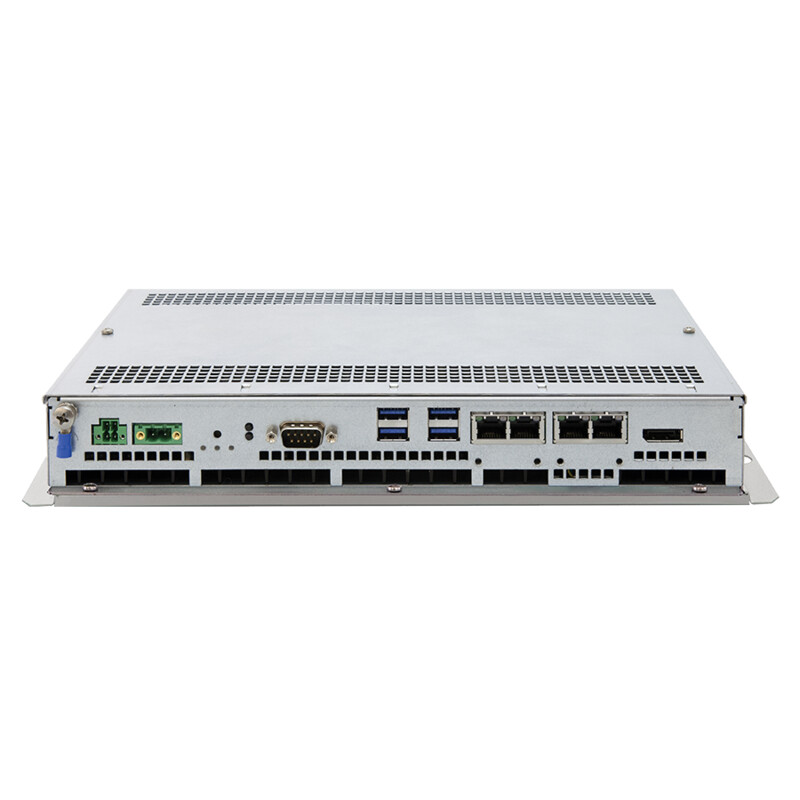

ASEM 6300B-SW2

Fanless wall mounting IPCs with Intel® Raptor Lake platform

Lifecycle status: Active
FT Optix - optional
REAL-TIME READY SOLUTIONS

  • Intel® Raptor Lake PCH SoC generation
  • Up to 48GB RAM with ECC support (for industrial processors), essential for mission critical and real time applications due to superior reliability and guaranteed data integrity
  • Up to 3 simultaneous storage options: M.2 SSD, 2.5’ SSD and CFast
  • Fanless IPC ensuring operation between 0 and 50 °C without the need for mechanical ventilation
  • ATX functionality for remote power on and native support for our new Smart UPS
  • 256kB MRAM for saving retention variables (optional)

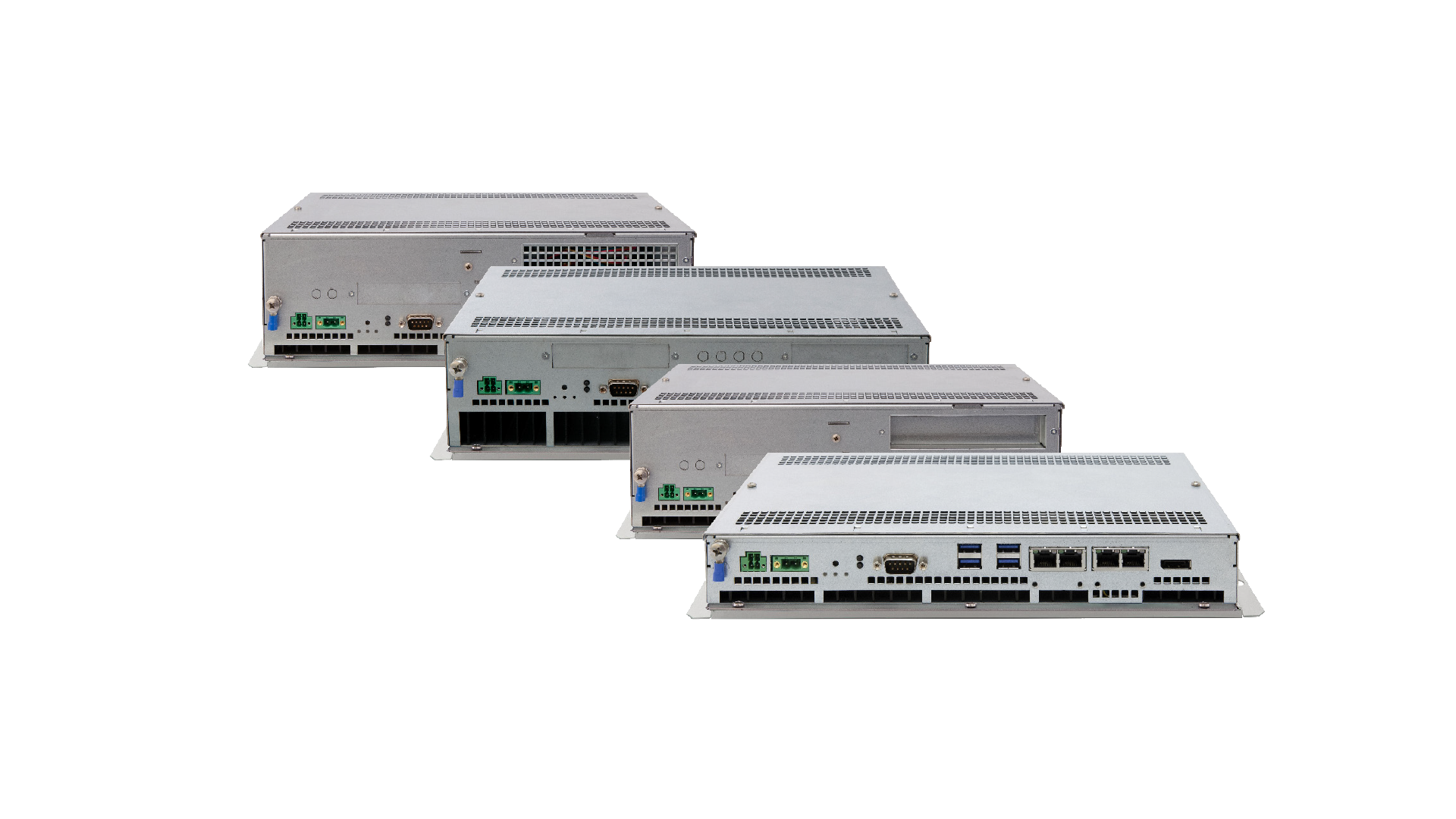

  • Available in SL version with reduced depth, S0 version with the possibility to install additional interfaces, S1 version with one PCIe expansion slot and D2 with 2 extractable SSDs
  • BIOS Thin Manager ready pre-installed
  • FactoryTalk® Remote Access™ remote support software optional (UBIQUITY compatible)
  • FactoryTalk® Optix™ software for HMI and Edge Computing applications (optional)






Richiedi maggiori informazioni_IT

Versions

ASEM 6300B-SW2AA (SL)

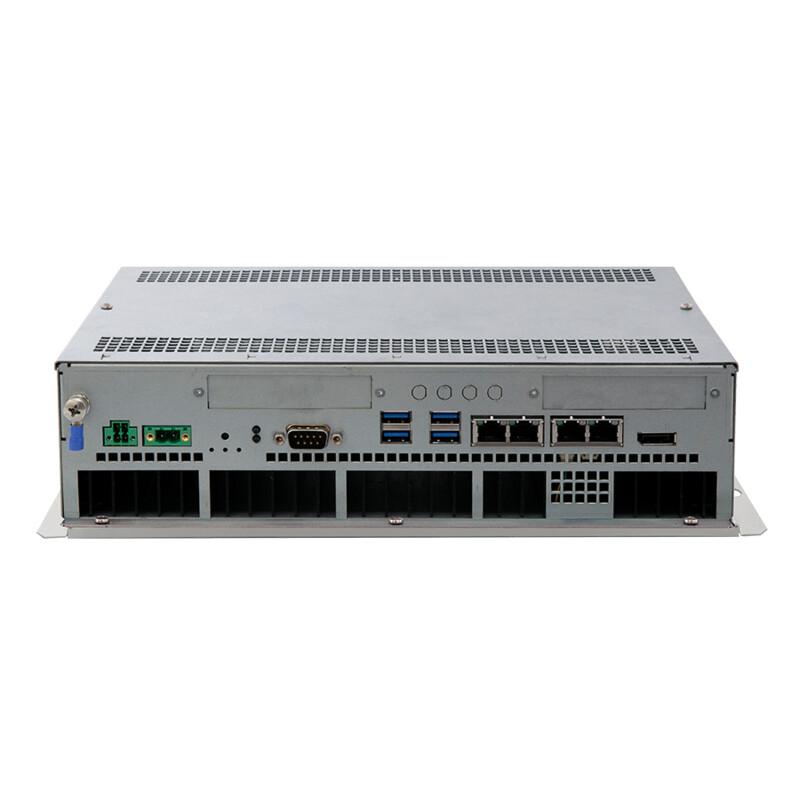

ASEM 6300B-SW2AB (S0)

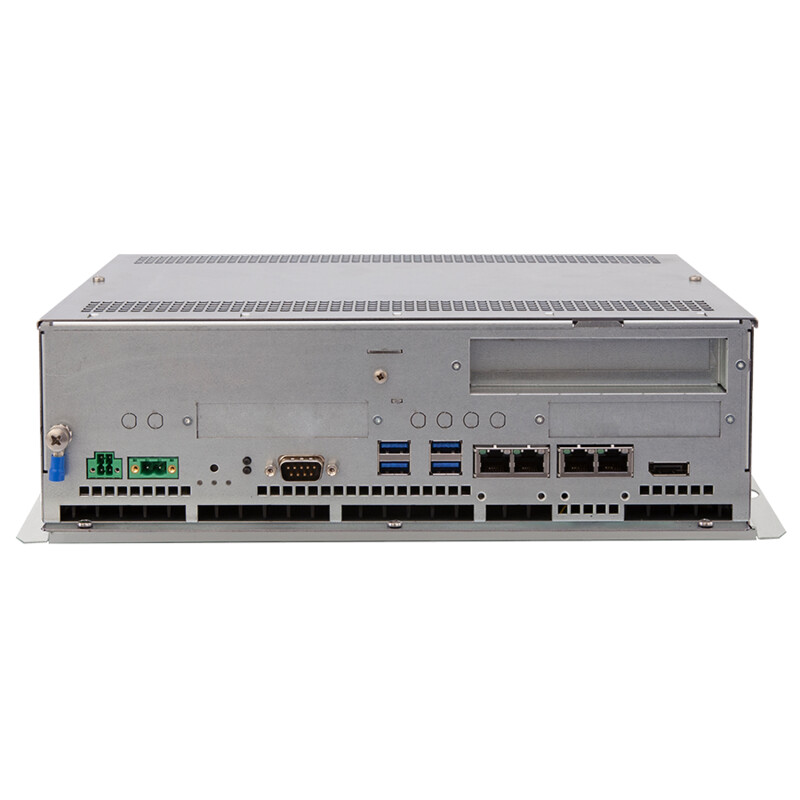

ASEM 6300B-SW2AC (S1)

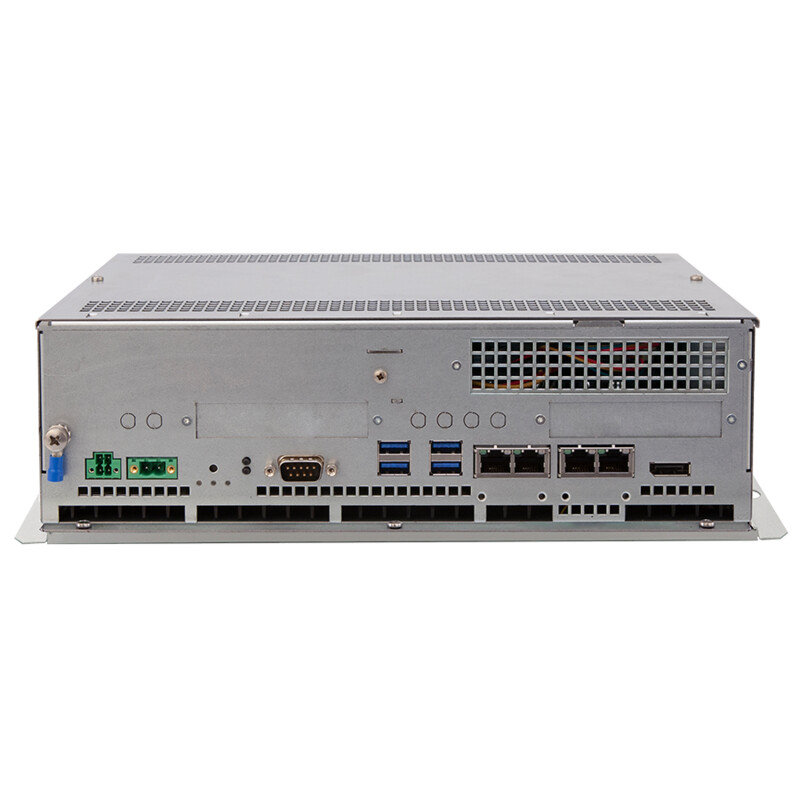

ASEM 6300B-SW2AD (D2)
