VK3200

Arm Mounting IPC IP65 all-round con button area personalizzabile

  • UBIQUITY inside

La famiglia di Arm Mounting IPC fanless VK3200 è basata sui processori dual core Celeron e Core™ i3, i5, i7 di quinta generazione della piattaforma Intel® Broadwell™ U.


È caratterizzata da chassis Full IP65 in fusione di alluminio, verniciati a polvere con trattamento antigraffio, compatibili con gli standard di installazione più diffusi.

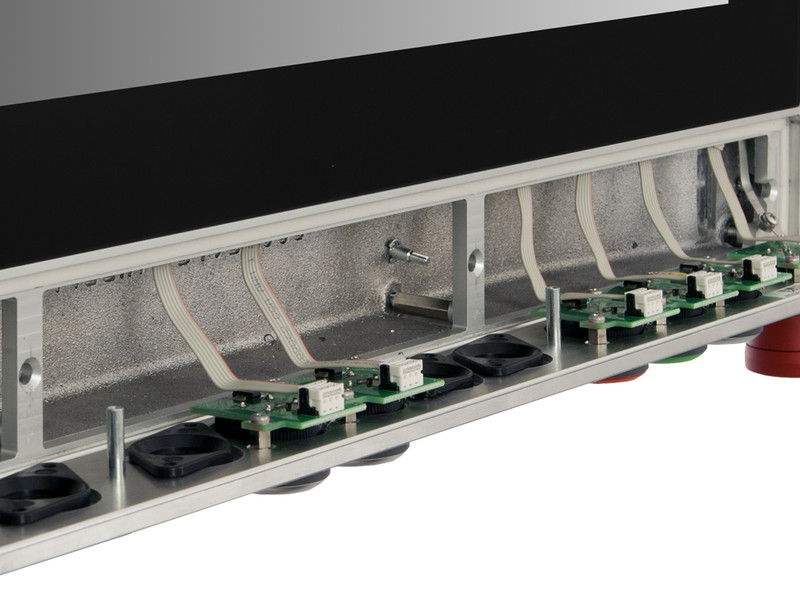

L’area pulsanti anteriore è disponibile versione HardWired o Fieldbus (EtherCAT Slave), è configurabile all'ordine da parte del cliente e permette di installare indicatori luminosipulsanti, selettori rotativi e a chiave, un fungo di emergenza, interfacce USB, Ethernet o RFID, WiFi™ e Bluetooth™, (descritti nella sezione "Varianti e Opzioni").


La motherboard "all in one" include due porte USB 3.0 ad accesso esterno protetto e, internamente allo chassis, tre porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", due USB 2.0, uno slot per CFast SATA III, un connettore mSATA per SSD SATA III, RAM fino a 8 GB con un modulo SODIMM DDR3 e un connettore interno per l'installazione di interfacce fieldbus aggiuntive.


La famiglia VK3200 è disponibile con LCD TFT LED Backlight a 16 milioni di colori da 15.6" a 24" in formato Wide, con frontali in alluminio True Flat, con touchscreen resistivo a 5 fili, o in alluminio e vetro True Flat Multitouch, con touchscreen capacitivo retroproiettato.


I sistemi VK3200 hanno l'alimentazione isolata a 24 VDC.







Technical Data

LED backlight TFT LCD

15.6" W - 1366x768

15.6" W - 1920x1080
18.5" W - 1366x768
18.5" W - 1920x1080
21.5" W- 1920x1080

TOUCHSCREEN

Resistive 5 wires

FRONT PANEL

 True Flat Aluminum

PROTECTION GRADE

Full IP65

PROCESSOR

Intel® Celeron 3765U 1,9Ghz, 2 cores - 2 threads - 2MB smart cache - 15W

Intel® Core™ i3-5010U 2,1Ghz, 2 cores - 4 threads - 3MB smart cache - 15W
Intel® Core™ i5-5350U 1,8Ghz (2,9GHz Turbo), 2 cores - 4 threads - 3MB smart cache - 15W
Intel® Core™ i7-5650U 2,2Ghz (3,1GHz Turbo), 2 cores - 4 threads - 4MB smart cache - 15W

CHIPSET

Intel® Broadwell PCH-LP (Platform Controller Hub - Low Power) ▪ Included into processor chip

VIDEO CONTROLLER

Intel® HD Graphics integrated in microprocessor Celeron 3765U, 850MHz Clock

Intel® HD Graphics 5500 integrated in microprocessor i3, 900MHz Clock
Intel® HD Graphics 6000 integrated in microprocessor i5, i7, 1GHz Clock with LVDS 8bit/color digital interface

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x SODIMM DDR3 module)

MASS STORAGE

  • 1 bootable CFast SATA III slot onboard with internal access

  • 1 x onboard connector for direct insertion of mSATA SSD SATA III

LAN

3 x LAN 10/100/1000Mbps (2 x Intel® I210-AT, 1 x Intel® I218-LM)

USB

2 x USB 3.0, external, rear, protected, IP65 (Type-A)

2 x USB 2.0, internal (Type-A)

ADD-ON INTERFACES

Position A

(max 1)

  • 1 x RS232/422/485 (DB15M)

  • 1 x RS232/422/485 (DB15M) isolated

Position B

(max 1)

  • 1 x NETcore X fieldbus boards for EtherNet IP, PROFINET, PROFIBUS, CANopen protocols

  • 1 x Wireless/Bluetooth adapter

CASE

Installation

For VESA 75/100 or for pole / suspension arm mounting system compatible with RITTAL CP40/ROLEC TARAPLUS/ HASEKE ULT KUPPLUNG 48

Material

Aluminium alloy EN AB46400

Colour

Anti-scratchable painted - RAL 9006

Accessories

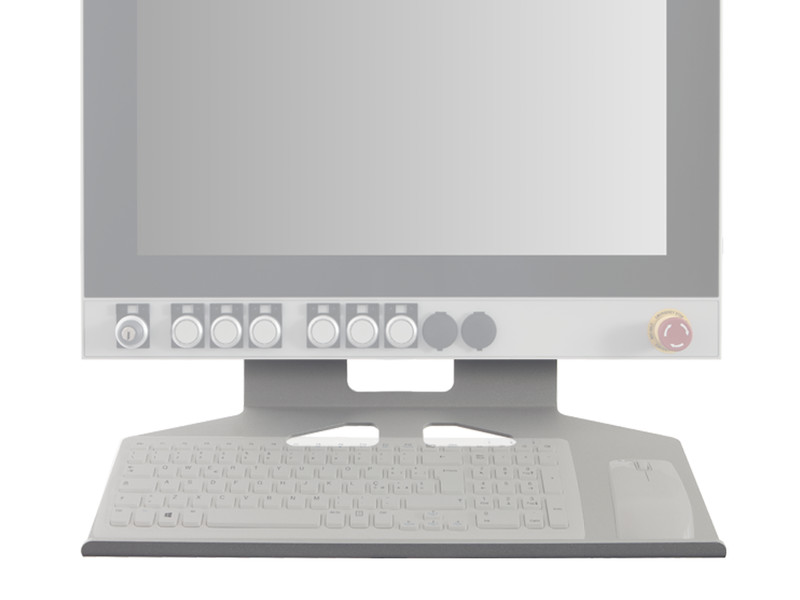

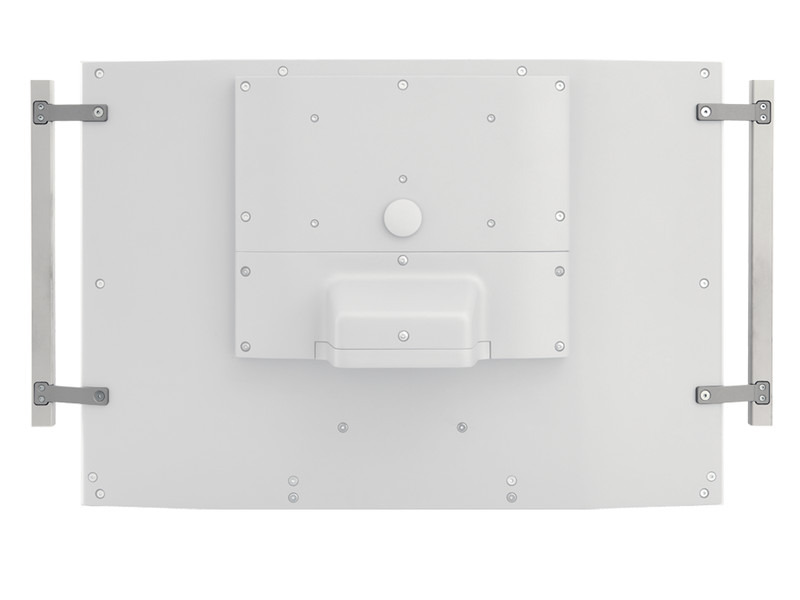

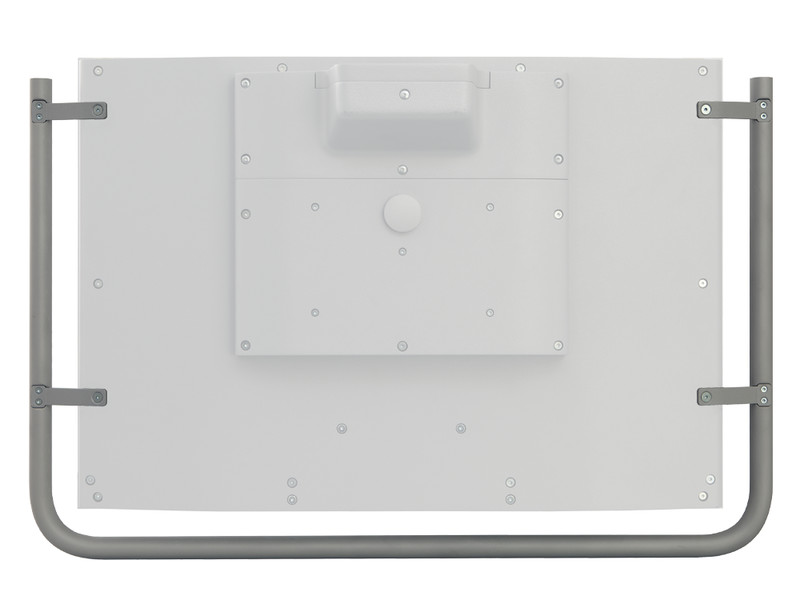

Side handles, perimetral handle, keyboard holder kit

BUTTONS AREA

(optional)

Buttons, lights and interfaces on the front panel are optional.

1 x Emergency stop button (always hard wired), 1 x RFID (internally connected to USB),

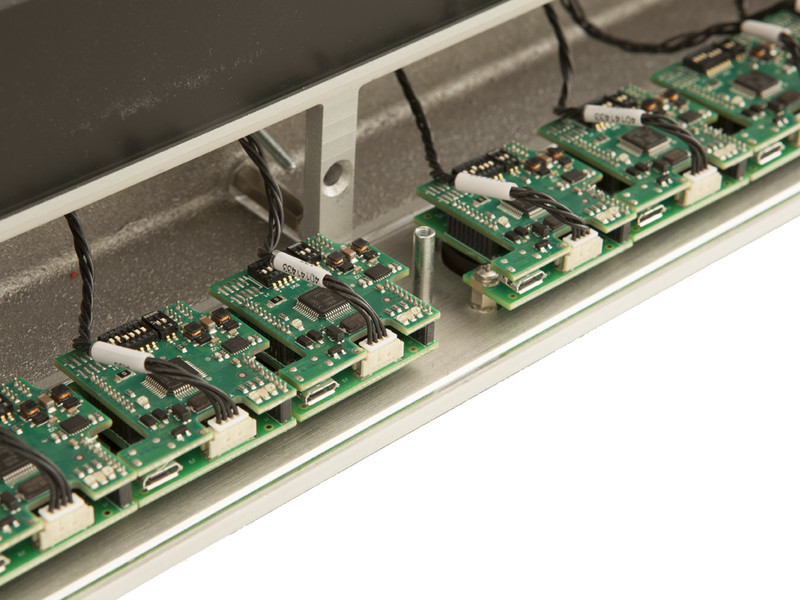

1 x WiFi/Bluetooth (internally connected to USB) 1 x USB port, lights, button keys and switches (hard wired or fieldbus).
Several industrial fieldbus masters are supported.
The push-button panel design allows easy device substitution.

POWER SUPPLY INPUT

  • Hard wired (max 8 elements)

  • Fieldbus (EtherCAT Slave)

O.S. CERTIFIED

Microsoft Windows 7 Pro/Ultimate 32/64 bit,

Microsoft Windows Embedded Standard 7E/7P 32/64 bit,
Microsoft Windows 8.1 Industry Pro 32/64 bit, Microsoft Windows 10 64 bit, Microsoft Windows 10 IoT Enterprise 2016 64 bit

OPERATING TEMPERATURE

0°C÷50°C

APPROVALS

CE, UL 61010-1

UL 61010-2-201

LED backlight TFT LCD

15.6" W - 1366x768

15.6" W - 1920x1080
18.5" W - 1366x768
18.5" W - 1920x1080
21.5" W- 1920x1080
24" W - 1920x1080

TOUCHSCREEN

P-CAP Multitouch

FRONT PANEL

 True Flat Aluminum

PROTECTION GRADE

Full IP65

PROCESSOR

Intel® Celeron 3765U 1,9Ghz, 2 cores - 2 threads - 2MB smart cache - 15W

Intel® Core™ i3-5010U 2,1Ghz, 2 cores - 4 threads - 3MB smart cache - 15W
Intel® Core™ i5-5350U 1,8Ghz (2,9GHz Turbo), 2 cores - 4 threads - 3MB smart cache - 15W
Intel® Core™ i7-5650U 2,2Ghz (3,1GHz Turbo), 2 cores - 4 threads - 4MB smart cache - 15W

CHIPSET

Intel® Broadwell PCH-LP (Platform Controller Hub - Low Power) ▪ Included into processor chip

VIDEO CONTROLLER

Intel® HD Graphics integrated in microprocessor Celeron 3765U, 850MHz Clock

Intel® HD Graphics 5500 integrated in microprocessor i3, 900MHz Clock
Intel® HD Graphics 6000 integrated in microprocessor i5, i7, 1GHz Clock with LVDS 8bit/color digital interface

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x SODIMM DDR3 module)

MASS STORAGE

  • 1 bootable CFast SATA III slot onboard with internal access

  • 1 x onboard connector for direct insertion of mSATA SSD SATA III

LAN

3 x LAN 10/100/1000Mbps (2 x Intel® I210-AT, 1 x Intel® I218-LM)

USB

2 x USB 3.0, external, rear, protected, IP65 (Type-A)

2 x USB 2.0, internal (Type-A)

ADD-ON INTERFACES

Position A

(max 1)

  • 1 x RS232/422/485 (DB15M)

  • 1 x RS232/422/485 (DB15M) isolated

Position B

(max 1)

  • 1 x NETcore X fieldbus boards for EtherNet IP, PROFINET, PROFIBUS, CANopen protocols

  • 1 x Wireless/Bluetooth adapter

CASE

Installation

For VESA 75/100 or for pole / suspension arm mounting system compatible with RITTAL CP40/ROLEC TARAPLUS/ HASEKE ULT KUPPLUNG 48

Material

Aluminium alloy EN AB46400

Colour

Anti-scratchable painted - RAL 9006

Accessories

Side handles, perimetral handle, keyboard holder kit

BUTTONS AREA

(optional)

Buttons, lights and interfaces on the front panel are optional.

1 x Emergency stop button (always hard wired), 1 x RFID (internally connected to USB),
1 x WiFi/Bluetooth (internally connected to USB) 1 x USB port, lights, button keys and switches (hard wired or fieldbus).
Several industrial fieldbus masters are supported.
The push-button panel design allows easy device substitution.

POWER SUPPLY INPUT

  • Hard wired (max 8 elements)

  • Fieldbus (EtherCAT Slave)

O.S. CERTIFIED

Microsoft Windows 7 Pro/Ultimate 32/64 bit,

Microsoft Windows Embedded Standard 7E/7P 32/64 bit,
Microsoft Windows 8.1 Industry Pro 32/64 bit, Microsoft Windows 10 64 bit, Microsoft Windows 10 IoT Enterprise 2016 64 bit

OPERATING TEMPERATURE

0°C÷50°C

APPROVALS

CE, UL 61010-1

UL 61010-2-201

​
